SCP FLEX

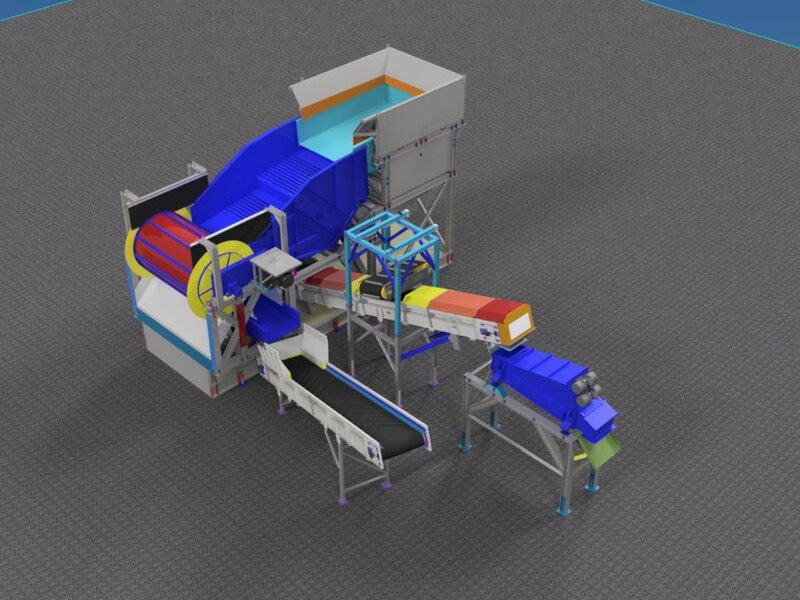

SCP FLEX 2400 SF — Metz

Semi mobile ferrous Scrap Cleaning Plant with 120 t/h capacity, screening and fine FE recovery
Customer
Coreso
Location
Metz, France
Year
2019

Designed as a semi-mobile FLEX installation, this SCP combines screening with fine ferrous recovery to deliver a cleaner output scrap stream. The fine fraction is separated, magnetically recovered and further classified, while screened and non-magnetic material is collected in boxes and sent to further treatment.

Key technology

  • Vibrating feeder with cascades & screening
  • Electromagnetic drum with rotating shell
  • Discharge conveyors
  • Fine Ferrous OVB recovery
  • Fine ferrous zig-zag classification

Services

  • Engineering & manufacturing
  • Installation & commissioning
  • Operator training

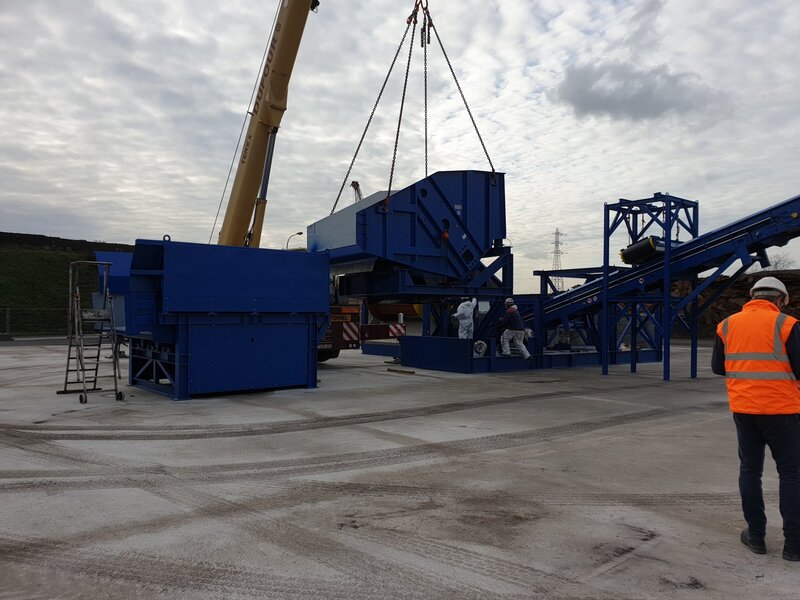

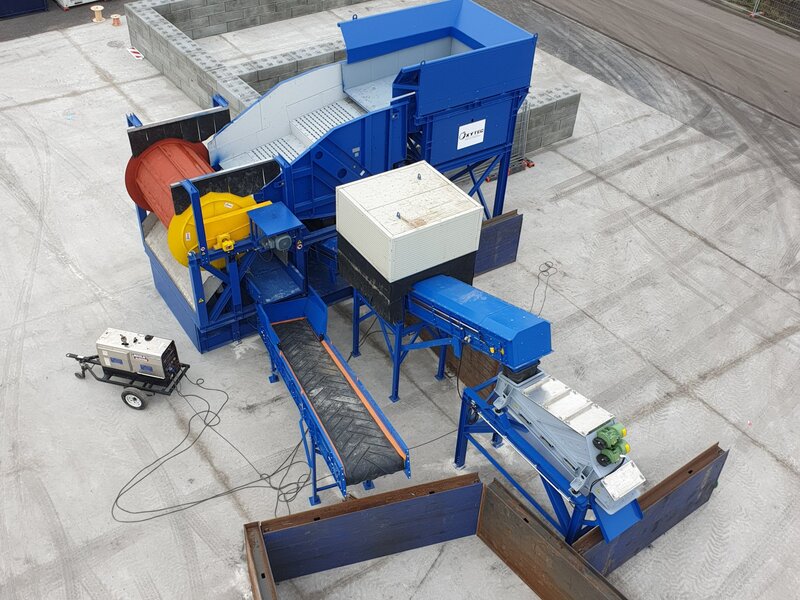

Project gallery

Technical data
Type FLEX (semi-mobile installation)
Operating width 2400 mm
Screen Yes (0–40 mm)
Input scrap E1, E40, E46, HMS, wagon & ship scrap residues
Throughput 120 t/h
Output scrap purity Up to 99% by weight
Input size 0–500 mm (max 1000 mm)
Bulk density 0.8–1.6 t/m³
Connected power 82 kW
Magnetic drum diameter (mm) Ø 1500 x 2500
Fine ferrous recovery Yes
Remote access Yes
Delivery of scrap Trucks, wagons

How it works

01
Load
02
Spread & open (vibrating feeder + cascades)
03
Screen 0–40 mm (fine fraction separated)
04
Magnetic drum separation (main fraction)
05
Overbelt fine ferrous recovery on fine line
06
Recovered fine ferrous classified to 0–8 mm and 8–40 mm
07
Clean ferrous discharge + non-magnetic discharge
