SCP FLEX

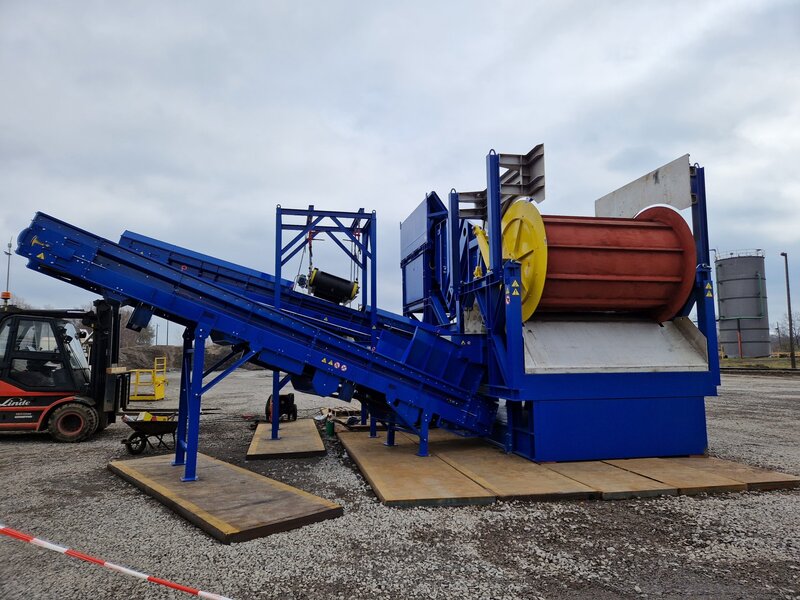

SCP FLEX 2400 SF — Bremen

Semi mobile ferrous Scrap Cleaning Plant with 120 t/h capacity, screening and fine FE recovery
Customer
Coreso
Location
Bremen, Germany
Year
2023

Designed as a semi-mobile FLEX installation, this SCP is built for efficient scrap cleaning with the option to relocate in segments between sites. Vibratory conveying and cascades open the material stream, while screening and fine ferrous recovery help reduce ferrous losses in the 0–40 mm fraction. Separated screened and non-magnetic material is collected in boxes and sent to further treatment.

Key technology

  • Vibrating feeder with cascades & screening
  • Electromagnetic drum with rotating shell
  • Fine Ferrous OVB recovery
  • Discharge conveyors

Services

  • Engineering & manufacturing
  • Installation & commissioning
  • Operator training

Project gallery

Technical data
Type FLEX (semi-mobile installation)
Operating width 2400 mm
Screen Yes (0–40 mm)
Input scrap E1, MHS, E40, E46
Throughput 120 t/h
Output scrap purity Up to 99% by weight
Input size 0–500 mm (max 1000 mm)
Bulk density 0.5–0.9 t/m³
Connected power 96.3 kW
Magnetic drum size (mm) Ø 1500 x 2500
Fine ferrous recovery Yes
Remote access Yes
Delivery of scrap Trucks, wagons

How it works

01
Load
02
Spread & open (vibrating conveyors + cascades)
03
Screen 0–40 mm (fine fraction separated)
04
Magnetic drum separation (main fraction)
05
Fine ferrous recovery on fine line (overbelt)
06
Clean ferrous discharge + screened/non-magnetic fraction collected in boxes for further treatment
