SCP FLEX

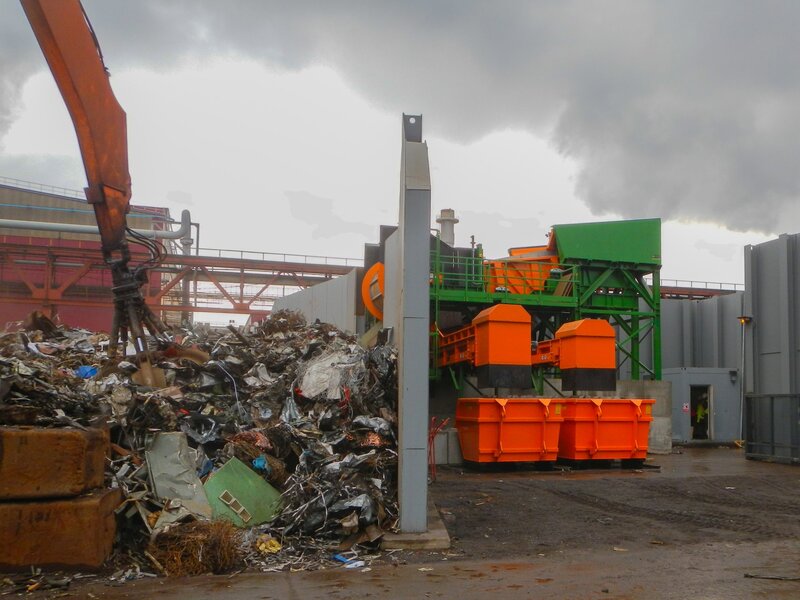

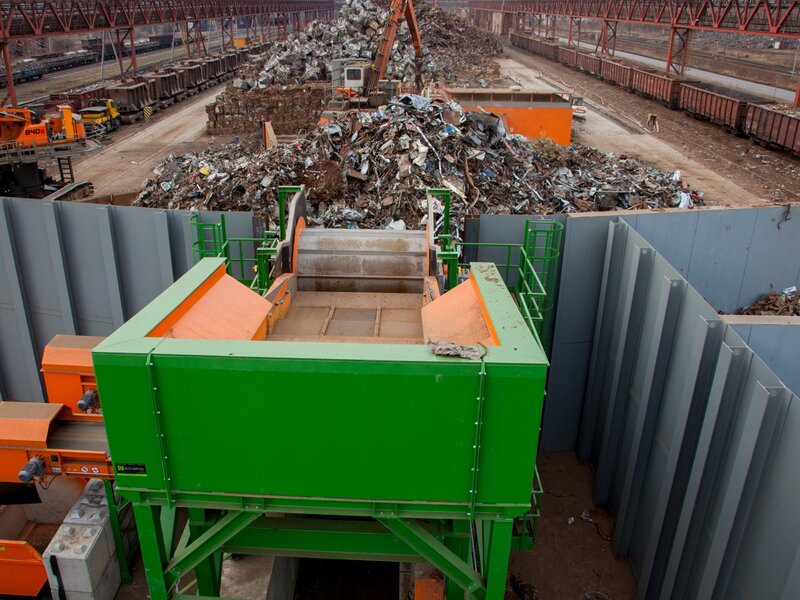

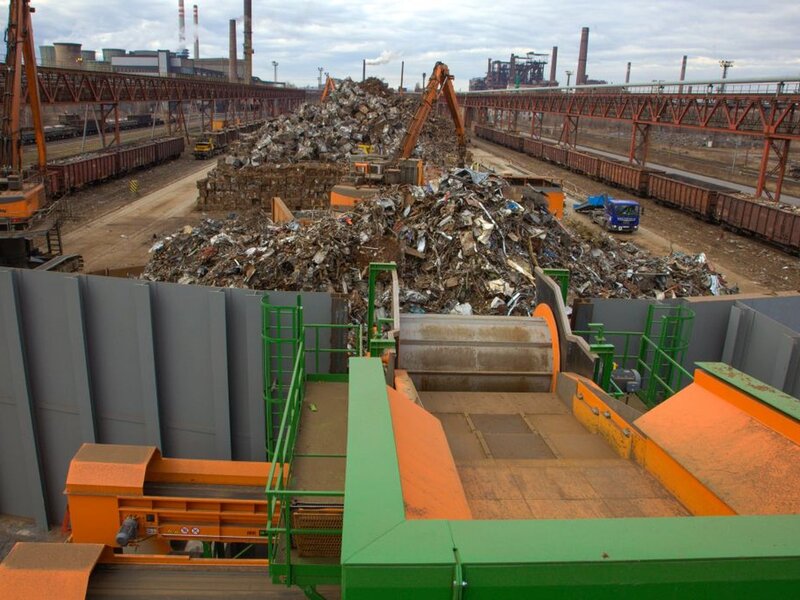

SCP FLEX 2400 S — Ostrava

Semi mobile ferrous Scrap Cleaning Plant with 120 t/h capacity and screening
Customer
ArcelorMittal
Location
Ostrava, Czech Republic
Year
2017

Designed as a semi-mobile FLEX installation with integrated screening (0–30 mm), this SCP separates fines to improve output scrap quality and stabilize material flow. Separated screened and non-magnetic material is collected in boxes and sent to further treatment.

Key technology

  • Vibrating feeder with cascades & screening
  • Electromagnetic drum with rotating shell
  • Discharge conveyors

Services

  • Engineering & manufacturing
  • Installation & commissioning
  • Operator training

Project gallery

Technical data
Type FLEX (semi-mobile installation)
Operating width 2400 mm
Screen Yes (0–30 mm)
Input scrap E1, E46, E40, HMS, wagon & ship scrap residues
Throughput 120 t/h
Output scrap purity Up to 99% by weight
Input size 0–500 mm (max 1000 mm)
Bulk density 0.8–1.6 t/m³
Connected power 60.4 kW
Magnetic drum size (mm) Ø 1500 x 2500

How it works

01
Load
02
Spread & open (vibrating feeder / table)
03
Screen 0–30 mm (fine fraction separated)
04
Magnetic separation on main fraction
05
Clean ferrous discharge + non-magnetic discharge
