SCP FLEX

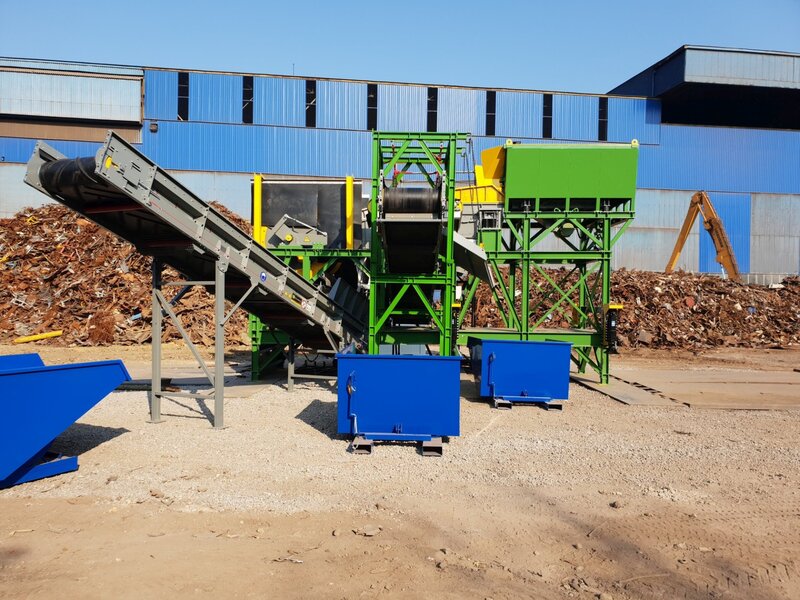

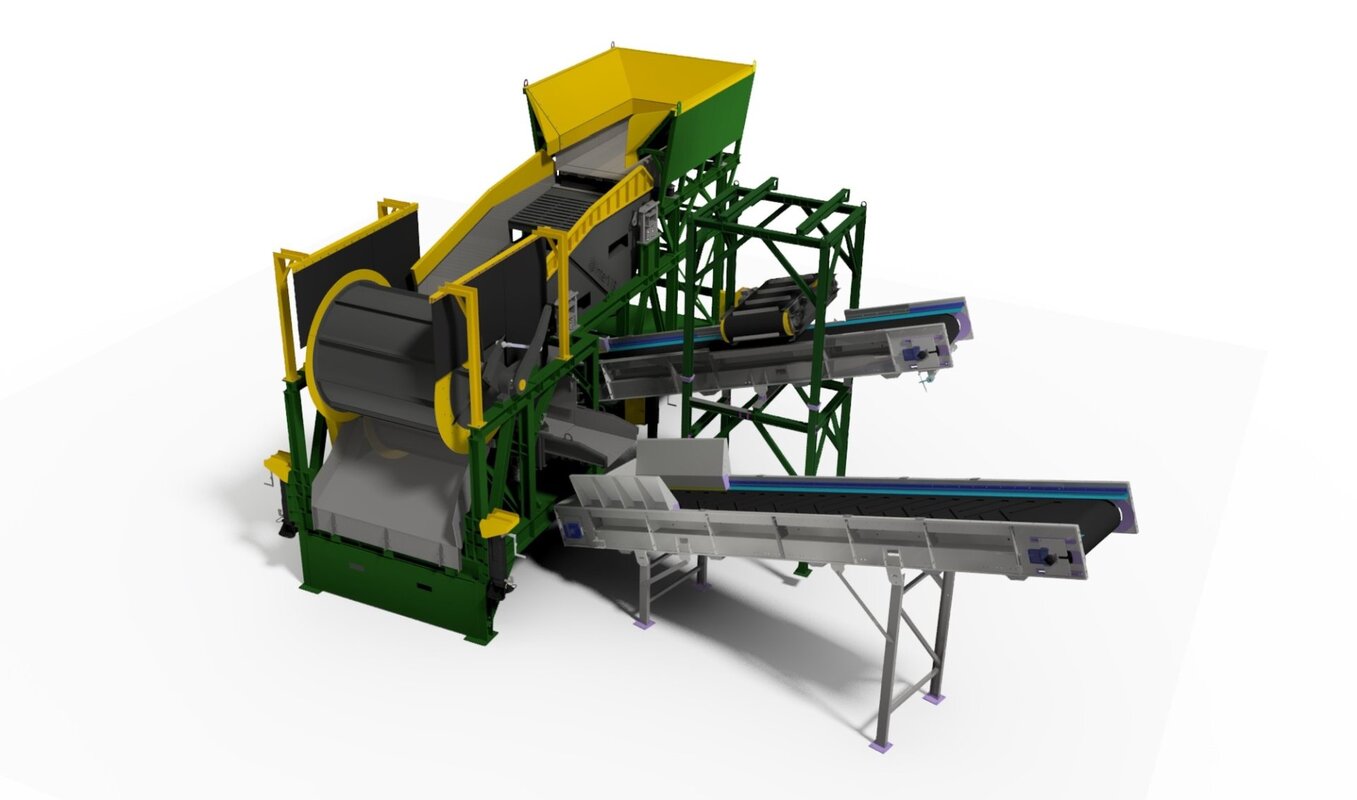

SCP FLEX 1600 SF — Rental unit

Semi mobile ferrous Scrap Cleaning Plant with 50 t/h capacity, screening and fine FE recovery
Customer
Pro Tehno
Location
Different locations (rental unit)
Year
2017

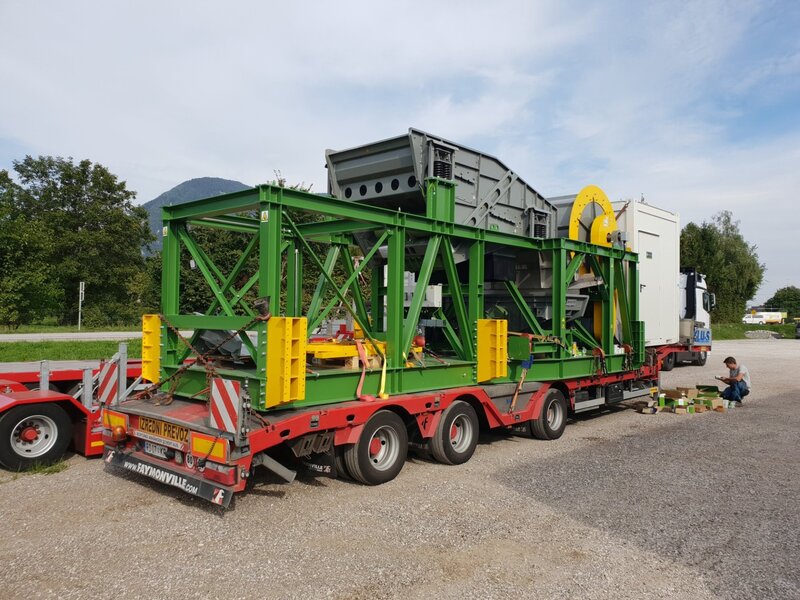

Built for multi-site deployment, this semi-mobile SCP supports efficient batch processing wherever scrap cleaning is required. The unit needs only a concrete pad and minimal civil works, enabling quick installation, easy operation and fast relocation between sites. Separated screened and non-magnetic material is collected in boxes and sent to further treatment.

Key technology

  • Vibrating feeder with cascades & screening
  • Electromagnetic drum with rotating shell
  • Discharge conveyors
  • Fine Ferrous OVB recovery

Services

  • Engineering & manufacturing
  • Installation & commissioning
  • Operator training

Project gallery

Technical data
Type FLEX (semi-mobile installation)
Operating width 1600 mm
Screen Yes (0–30 mm)
Input scrap E1, E40, E46, HMS
Throughput 50 t/h
Output scrap purity Up to 99% by weight
Input size 0–500 mm (max 1000 mm)
Bulk density 0.8–1.6 t/m³
Connected power 60 kW
Magnetic drum diameter (mm) Ø 1500 x 1600
Fine ferrous recovery Yes
Remote access Yes
Delivery of scrap Trucks

How it works

01
Load
02
Spread & open (vibrating feeder + cascades)
03
Screen 0–30 mm (fine fraction separated)
04
Magnetic drum separation (main fraction)
05
Fine ferrous recovery on fine line
06
Clean ferrous discharge + non-magnetic discharge
