SCP FLEX 1600 SF — Mo i Rana
SCP FLEX

SCP FLEX 1600 SF — Mo i Rana

Semi mobile ferrous Scrap Cleaning Plant with 50 t/h capacity, screening and fine FE recovery
Site: Celsa Armeringsstål AS
Customer
Harsco
Location
Mo i Rana, Norway
Year
2016

Designed as a compact FLEX installation with integrated screening and fine ferrous recovery, this system helps clean mixed ferrous scrap streams before downstream use. Screening and fine ferrous recovery are the key factors behind achieving output scrap purity of up to 99% by weight on this installation.

Key technology

  • Vibrating feeder with cascades & screening
  • Electromagnetic drum with rotating shell
  • Discharge conveyors
  • Fine Ferrous OVB recovery

Services

  • Engineering & manufacturing
  • Installation & commissioning
  • Operator training

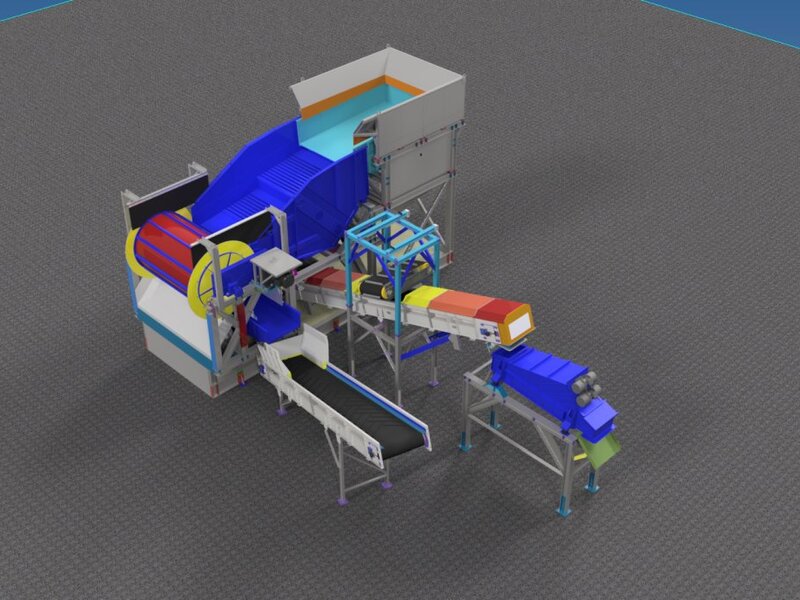

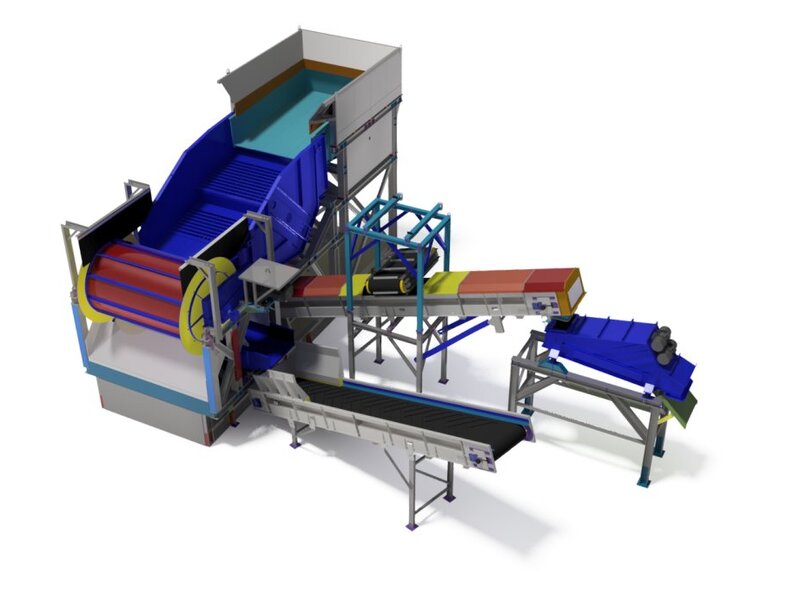

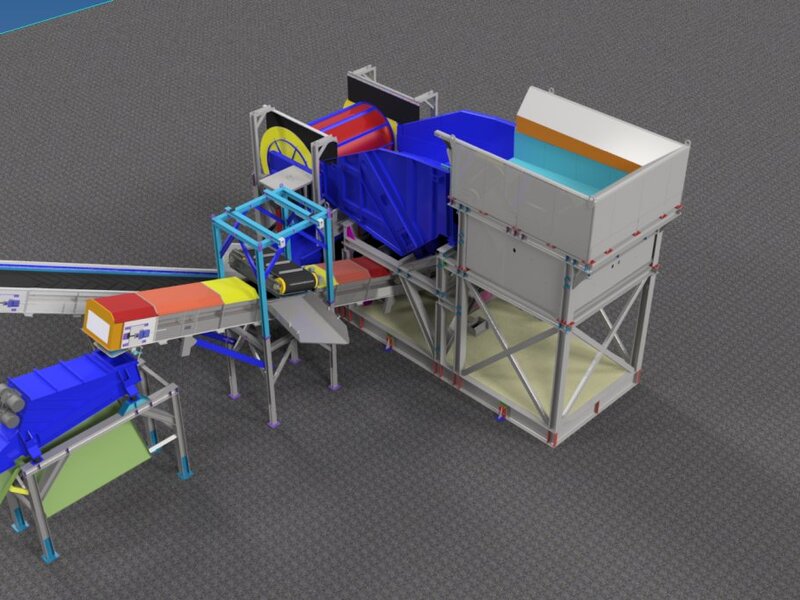

Project gallery

Technical data
Type FLEX (semi-mobile)
Operating width 1600 mm
Screen Yes (0–30 mm)
Input scrap E1, E40, E46, HMS, wagon & ship scrap residues
Throughput 50 t/h
Input size 0–500 mm (max 1000 mm)
Bulk density 0.8–1.5 t/m³
Connected power 52 kW
Magnetic drum size (mm) Ø1500 x 1600
Fine ferrous recovery Yes
Delivery of scrap Ships, trucks

How it works

01
Load
02
Spread & open (vibrating feeder + cascades)
03
Screen 0–30 mm (fine fraction separated)
04
Magnetic drum separation (heavy fraction)
05
Fine ferrous recovery on the fine line
06
Clean ferrous discharge + non-magnetic discharge
