SCP FLEX

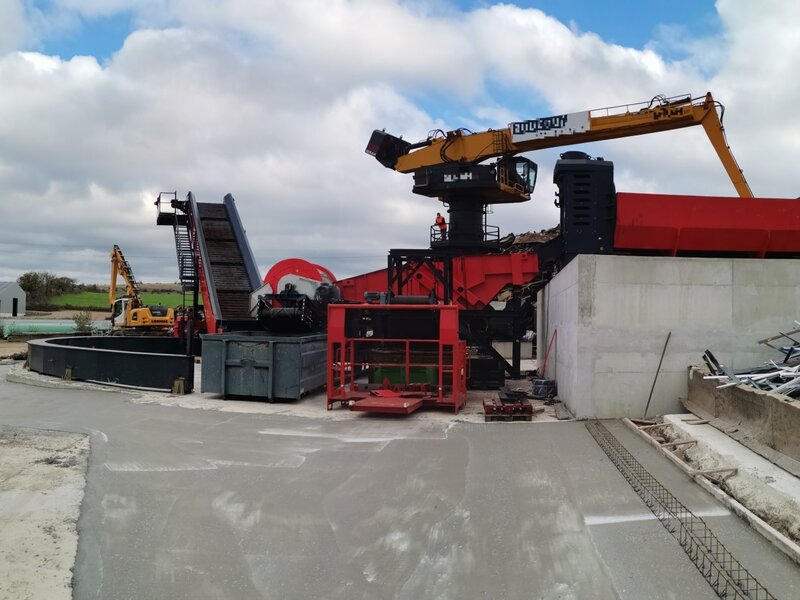

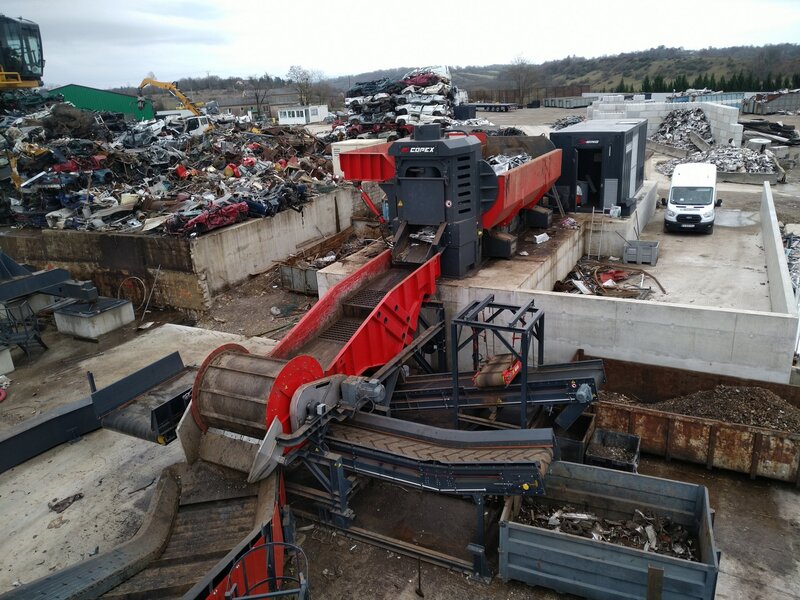

SCP FLEX 1600 RD — Salles-la-Source

Semi mobile ferrous Scrap Cleaning Plant with 50 t/h capacity, screening, fine ferrous recovery and removable drum
Customer
Boudou Recuperation
Location
Salles-la-Source, France
Year
2020

Designed for flexible use, this semi-mobile SCP can be transported in segments and quickly assembled on-site. The removable drum concept enables operation on mixed ferrous scrap and—when required—on non-magnetic input, keeping the plant adaptable to changing material streams.

Key technology

  • Vibrating feeder with cascades & screening
  • Electromagnetic drum with rotating shell
  • Fine Ferrous OVB recovery
  • Belt conveyors for discharge

Services

  • Engineering & manufacturing
  • Assembly

Project gallery

Technical data
Type FLEX (semi-mobile installation)
Operating width 1600 mm
Screen Yes (0–20 mm)
Input scrap After shear E1, stainless steel recycling
Throughput 50 t/h
Output scrap purity Up to 99% by weight
Input size 0–500 mm (max 1000 mm)
Bulk density 0.8–1.6 t/m³
Connected power 50 kW
Magnetic drum size (mm) Ø 1500 x 1600
Fine ferrous recovery Yes
Delivery of scrap After shear

How it works

01
Load
02
Spread & open (vibrating conveyors + cascades)
03
Screen 0–20 mm (fine fraction separated)
04
Magnetic drum separation (main fraction)
05
Fine ferrous recovery on fine line (overbelt)
06
Clean ferrous discharge + non-magnetic discharge
