SCP CORE OVBH 2000 — Fredrikstad

Integrated overbelt ferrous Scrap Cleaning Plant with 60 t/h capacity- hybrid multipole magnetic separation
Customer
Metallco Oppland AS
Location
Fredrikstad, Norway
Year
2015

Installed after magnetic drum separation, OVBH targets the “carryover” problem—fabric and other non-magnetic particles trapped in the magnetic fraction (typical for shredded cars). The multipole rolling zone releases these impurities during underside-belt transport, delivering a cleaner ferrous output and significantly reducing hand-picking effort.

Key technology

  • Vibrating feeder
  • Electromagnet capture onto underside belt
  • Multipole permanent magnet blocks (rolling zone)
  • PLC control

Services

  • Design & engineering
  • Manufacturing
  • Assembly

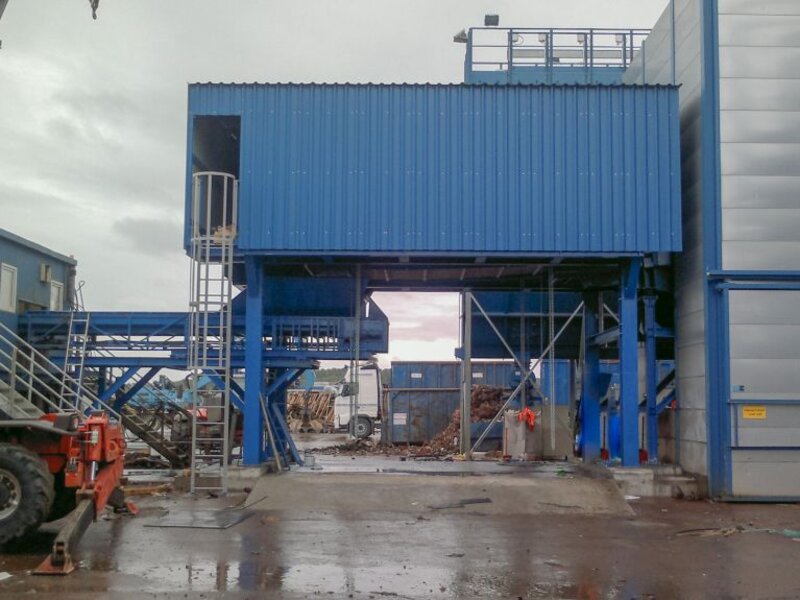

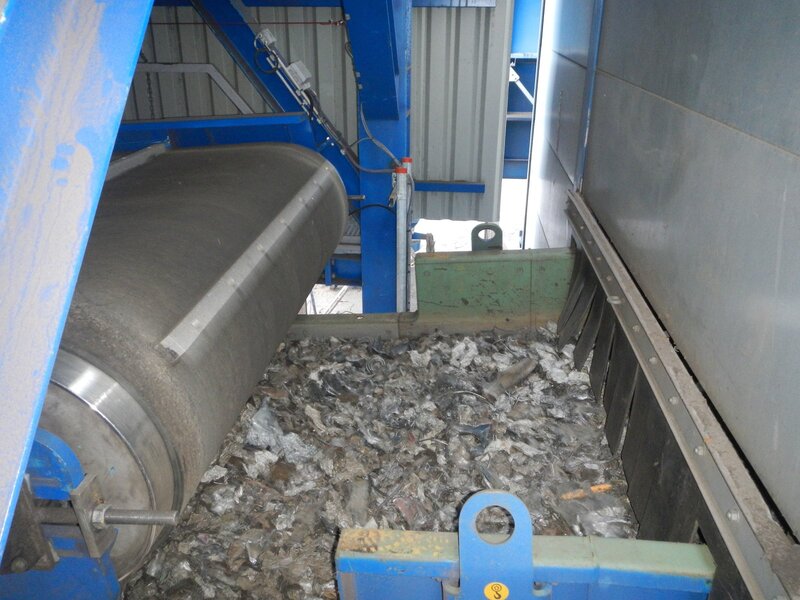

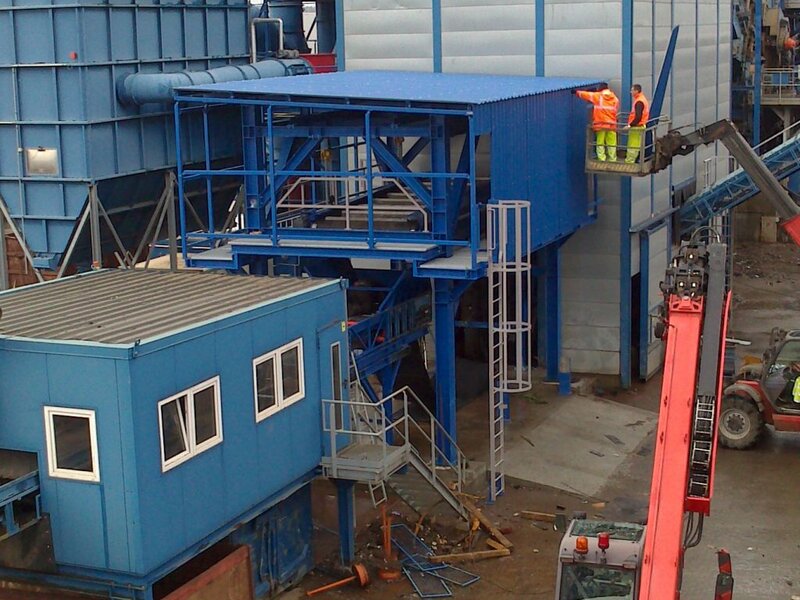

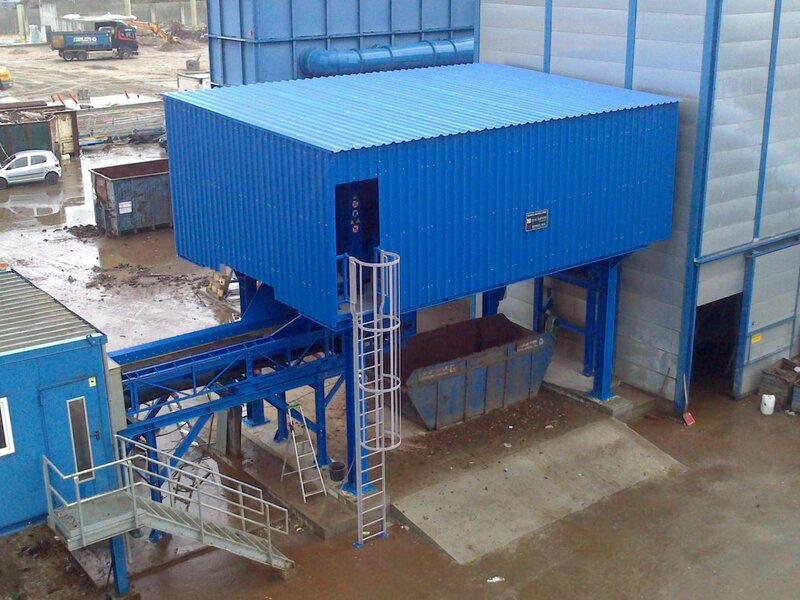

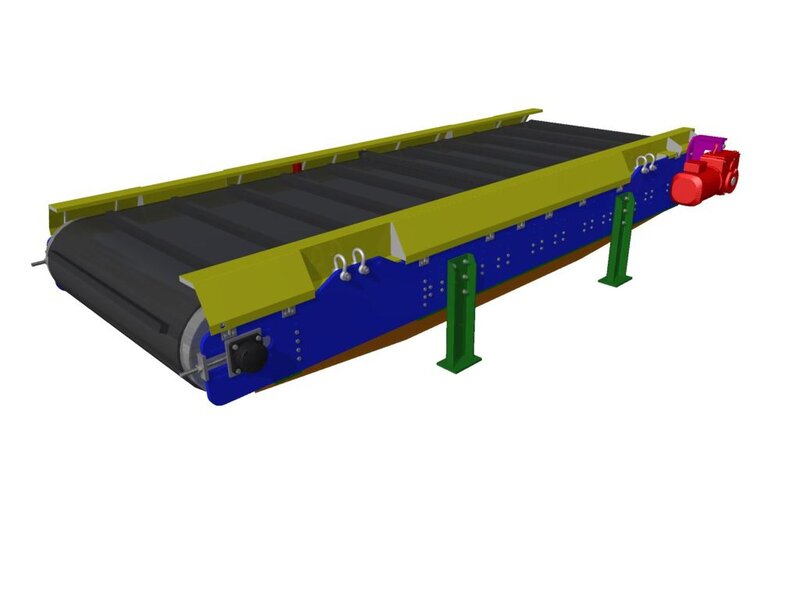

Project gallery

Technical data
Type CORE (integrated installation)
Operating width 2000 mm
Input scrap E40, E46, WEEE ferrous fractions
Throughput 60 t/h
Output scrap purity Up to 99% by weight
Input size 0–300 mm
Bulk density 0.8–1.6 t/m³
Connected power 20 kW
Overbelt speed 0.3 – 2.0 m/s
Delivery of scrap Shredder on location

How it works

01
Spread (vibrating feeder)
02
Capture (electromagnet)
03

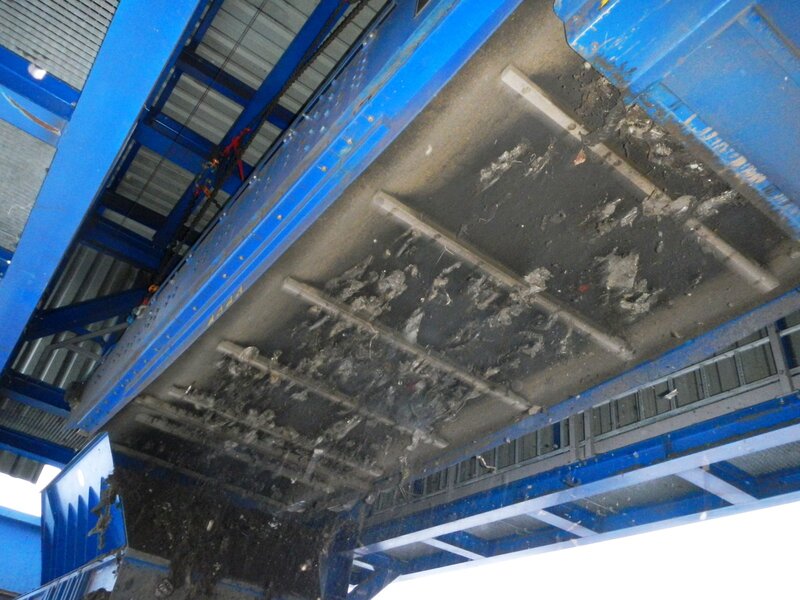

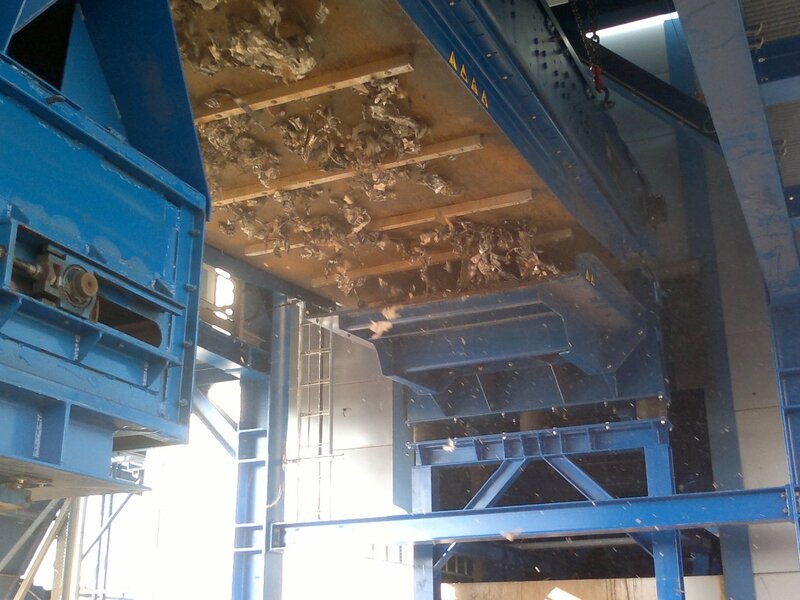

Transport (underside belt)
04
Roll (multipole permanent blocks)
05
Non-magnetic drops out
06
Clean ferrous discharge
