SCP CORE 3000 SF G — Warsaw
SCP CORE

SCP CORE 3000 SF G — Warsaw

Integrated ferrous Scrap Cleaning Plant with 150 t/h capacity, screening, fine and coarse ferrous recovery
Customer
Oxytec
Location
Warsaw, Poland
Year
2024

Installed as an integrated CORE plant, this SCP is designed for high-capacity magnetic cleaning of recycled ferrous scrap (E1, E46, E40, HMS1/2) and wagon residues. Vibratory conveying with cascades opens compacted material for improved cleaning, while screening (0–20 mm) and additional ferrous recovery stages reduce ferrous losses in fine and coarse non-magnetic fractions. Operating parameters (magnet power, drum speed and vibration settings) are adjustable to maintain stable performance across changing input.

Key technology

  • Vibrating feeder with cascades & screening
  • Electromagnetic drum with rotating shell
  • Fine and coarse ferrous OVB recovery
  • Discharge conveyors

Services

  • Engineering & manufacturing
  • Installation & commissioning
  • Operator training

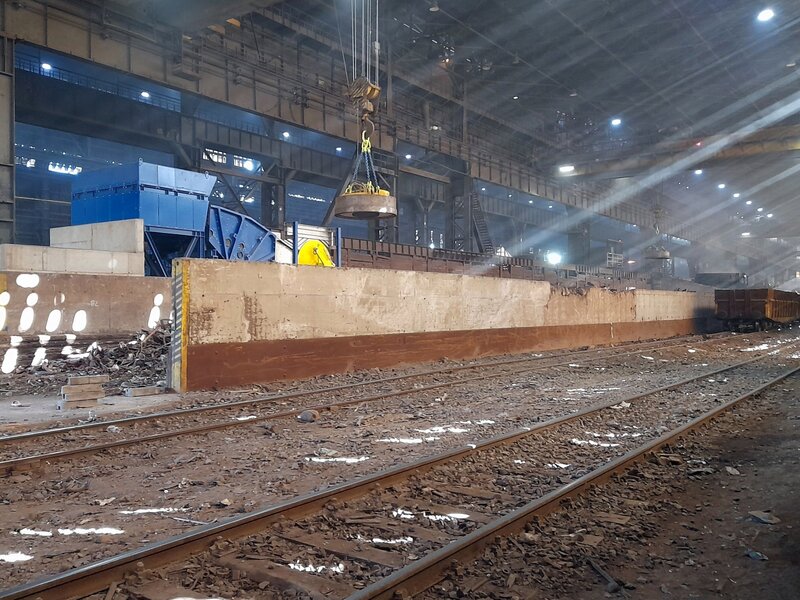

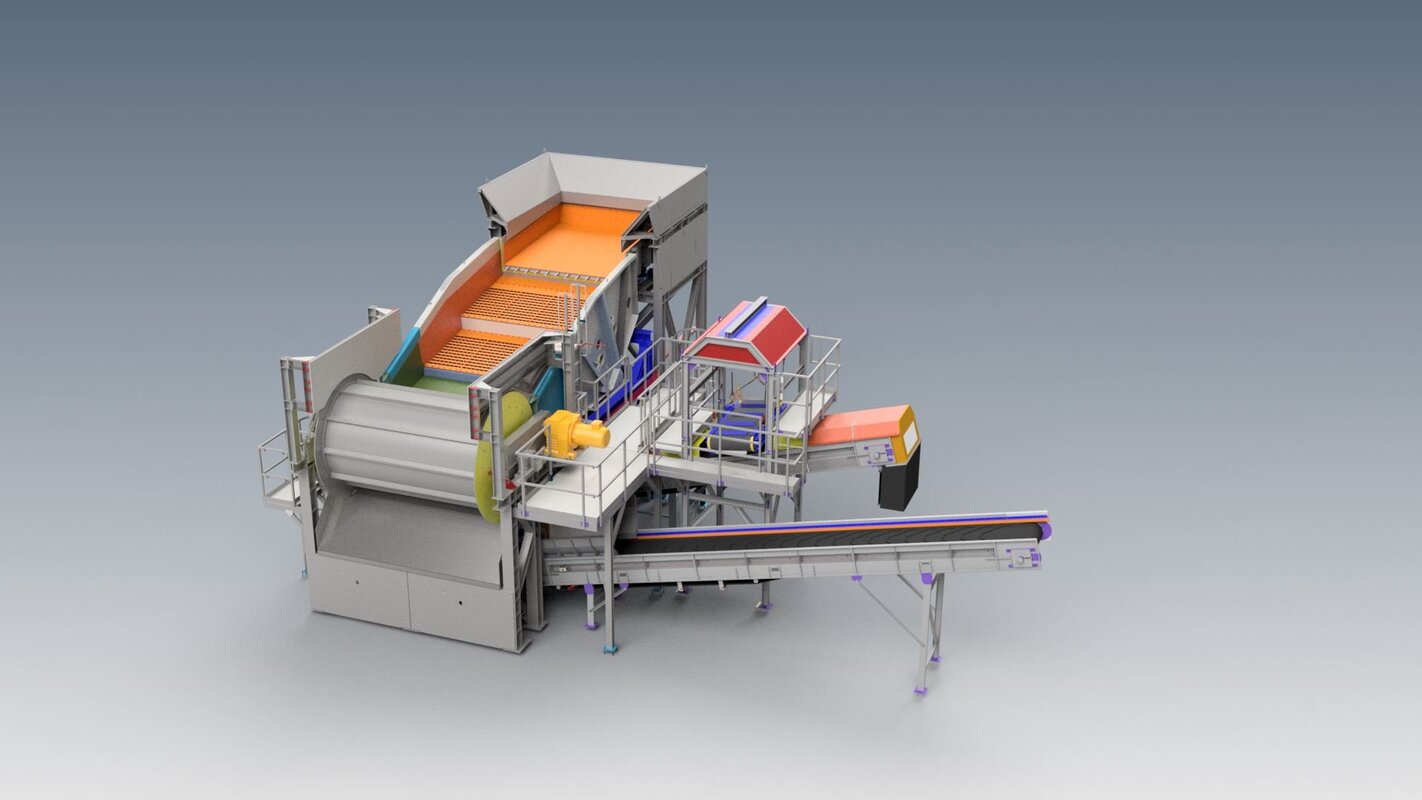

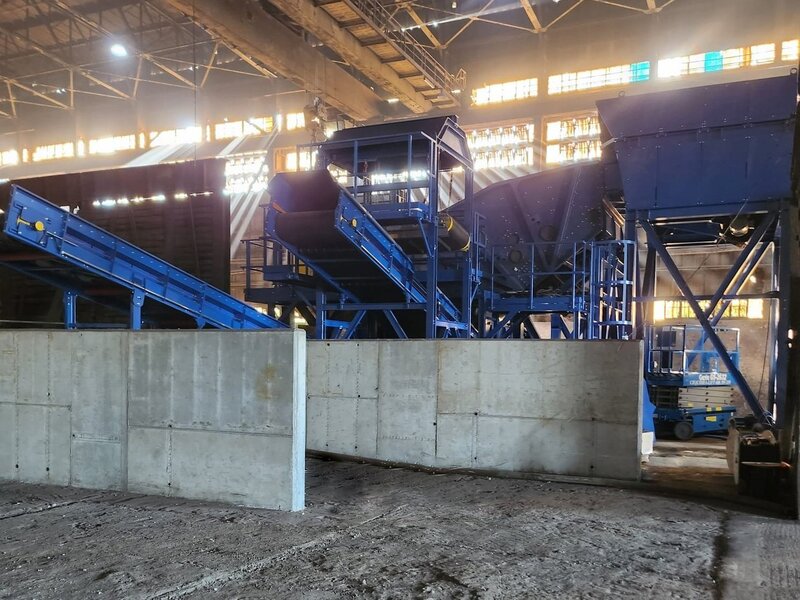

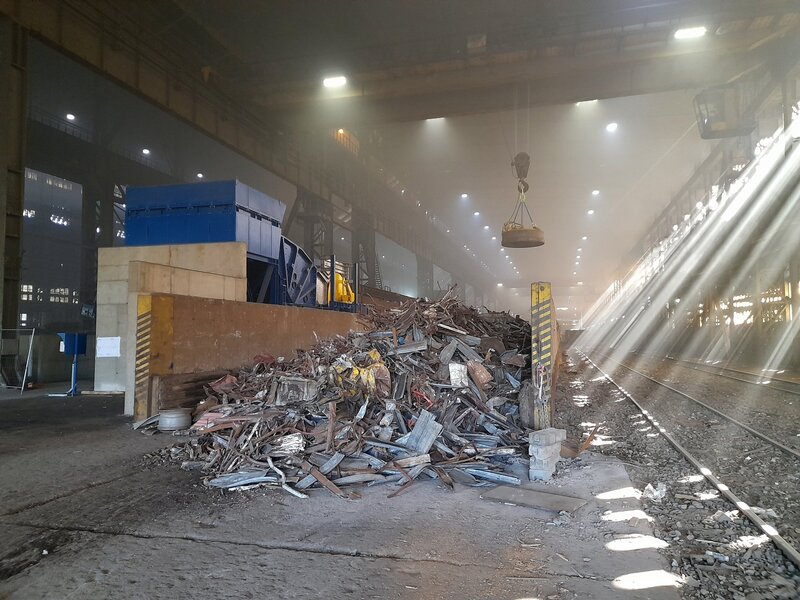

Project gallery

Technical data
Type CORE (fixed installation)
Operating width 3000 mm
Screen Yes (0–20 mm)
Input scrap E1, MHS, E40, E46, wagon residues
Throughput 150 t/h
Output scrap purity Up to 99% by weight
Input size 0–1500 mm
Bulk density 0.5–0.9 t/m³
Connected power 110 kW
Magnetic drum diameter (mm) Ø 1800 x 3100
Fine ferrous recovery Yes
Coarse ferrous recovery Yes
Delivery of scrap Trucks, wagons

How it works

01
Load
02
Spread & open (vibrating conveyors + cascades)
03
Screen 0–20 mm (fine fraction separated)
04
Magnetic drum separation (main fraction)
05
Ferrous recovery stages on fine and coarse fractions
06
Clean ferrous discharge + screened/non-magnetic fraction collected for further treatment
