SCP CORE 3000 SF G — Olaberria

Integrated ferrous Scrap Cleaning Plant with 150 t/h capacity, screening, fine and coarse ferrous recovery
Customer
Oxytec
Location
Olaberria, Spain
Year
2024

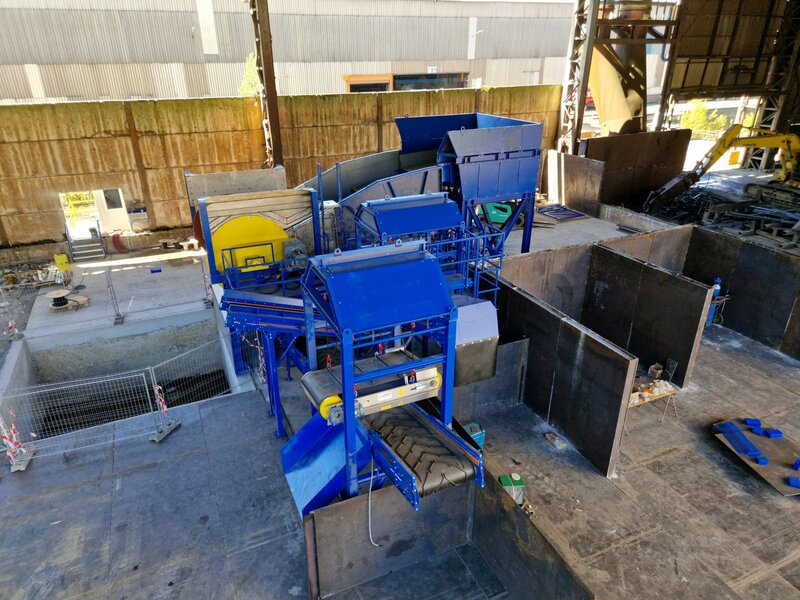

Installed as an integrated CORE plant, this SCP is designed for high-capacity magnetic cleaning of recycled ferrous scrap (E1, MHS, E40, E46) and wagon residues. Vibratory conveying with cascades opens compacted material for improved cleaning, while screening (0–20 mm) and additional recovery stages help reduce ferrous losses in both fine and coarse non-magnetic fractions. Optimal performance is supported by adjustable operating parameters such as electromagnet power, drum speed and vibration settings.

Key technology

  • Vibrating feeder with cascades & screening
  • Electromagnetic drum with rotating shell
  • Fine and coarse ferrous OVB recovery
  • Discharge conveyors

Services

  • Engineering & manufacturing
  • Installation & commissioning
  • Operator training

Project gallery

Technical data
Type CORE (fixed installation)
Operating width 3000 mm
Screen Yes (0–20 mm)
Input scrap E1, MHS, E40, E46, wagon residues
Throughput 150 t/h
Output scrap purity Up to 99% by weight
Input size 0–1500 mm
Bulk density 0.5–0.9 t/m³
Connected power 110 kW
Magnetic drum diameter (mm) Ø 1800 x 3100
Fine ferrous recovery Yes
Coarse ferrous recovery Yes
Remote access Yes
Delivery of scrap Trucks, wagons

How it works

01
Load
02
Spread & open (vibrating conveyors + cascades)
03
Screen 0–20 mm (fine fraction separated)
04
Magnetic drum separation (main fraction)
05

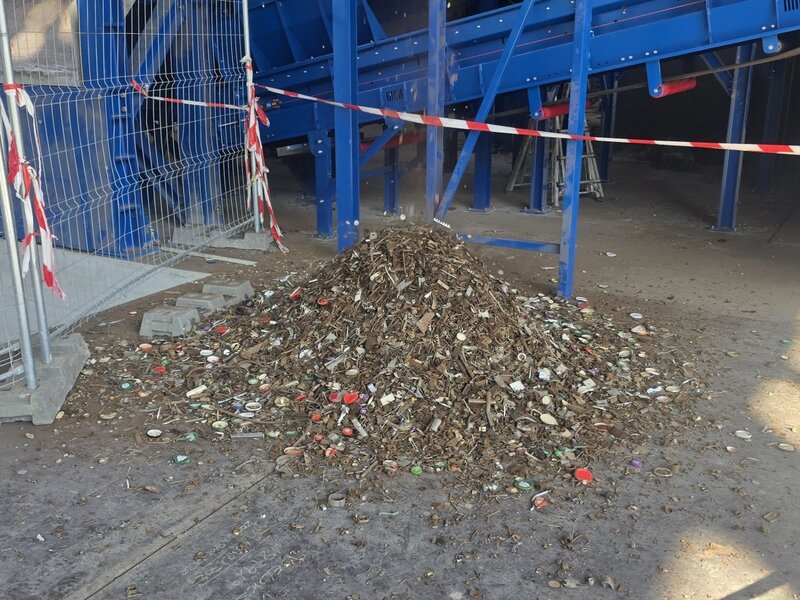

Ferrous recovery stages on fine and coarse fractions
06
Clean ferrous discharge + screened/non-magnetic fraction collected for further treatment
