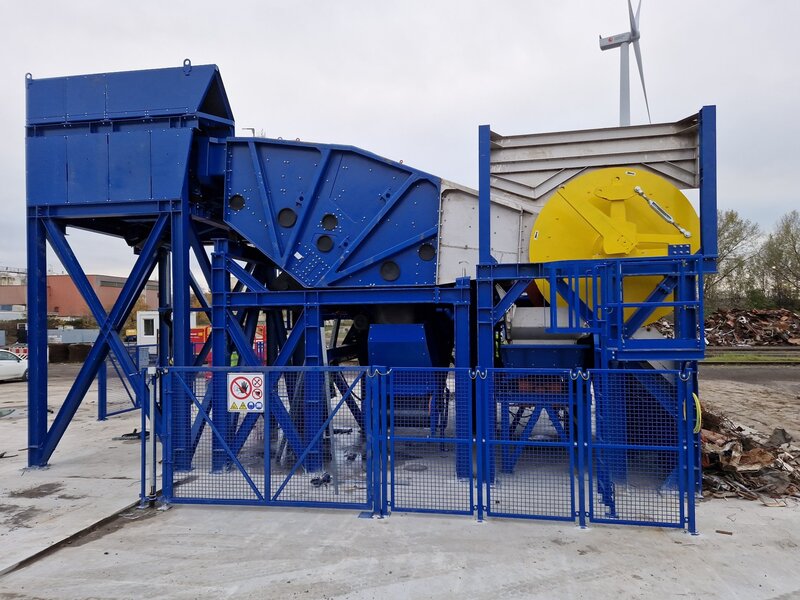

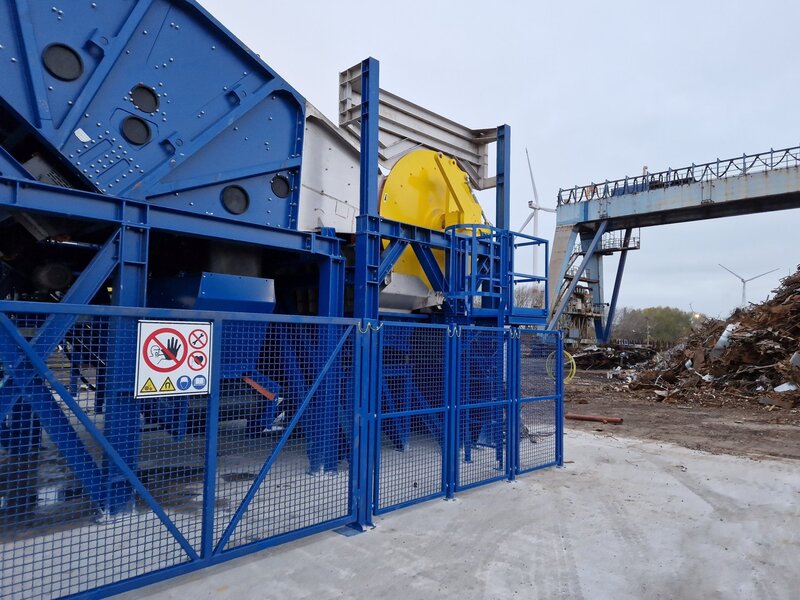

SCP CORE 3000 SF G — Hamburg

Integrated ferrous Scrap Cleaning Plant with 150 t/h capacity, screening, fine and coarse ferrous recovery
Customer
Oxytec
Location
Hamburg, Germany
Year
2023

Installed as an integrated CORE plant, this SCP is designed for high-capacity magnetic cleaning of recycled ferrous scrap (E1, MHS, E40, E46) and wagon residues. Vibratory conveying with cascades opens compacted material for improved cleaning, while screening and additional ferrous recovery stages reduce ferrous losses in both fine and coarse non-magnetic fractions. Operating parameters (magnet power, drum speed and vibration settings) are adjustable to maintain stable performance across changing input.

Key technology

  • Vibrating feeder with cascades & screening
  • Electromagnetic drum with rotating shell
  • Fine and coarse ferrous OVB recovery
  • Discharge conveyors

Services

  • Engineering & manufacturing
  • Installation & commissioning
  • Operator training

Project gallery

Technical data
Type CORE (fixed installation)
Operating width 3000 mm
Screen Yes (0–20 mm)
Input scrap E1, MHS, E40, E46, wagon residues
Throughput 150 t/h
Output scrap purity Up to 99% by weight
Input size 0–1500 mm
Bulk density 0.5–0.9 t/m³
Connected power 110 kW
Magnetic drum diameter (mm) Ø 1800 x 3100
Fine ferrous recovery Yes
Coarse ferrous recovery Yes
Delivery of scrap Trucks, wagons

How it works

01
Load
02
Spread & open (vibrating conveyors + cascades)
03
Screen 0–20 mm (fine fraction separated)
04
Magnetic drum separation (main fraction)
05
Ferrous recovery stages on fine and coarse fractions
06
Clean ferrous discharge + screened/non-magnetic fraction collected for further treatment
