SCP CORE

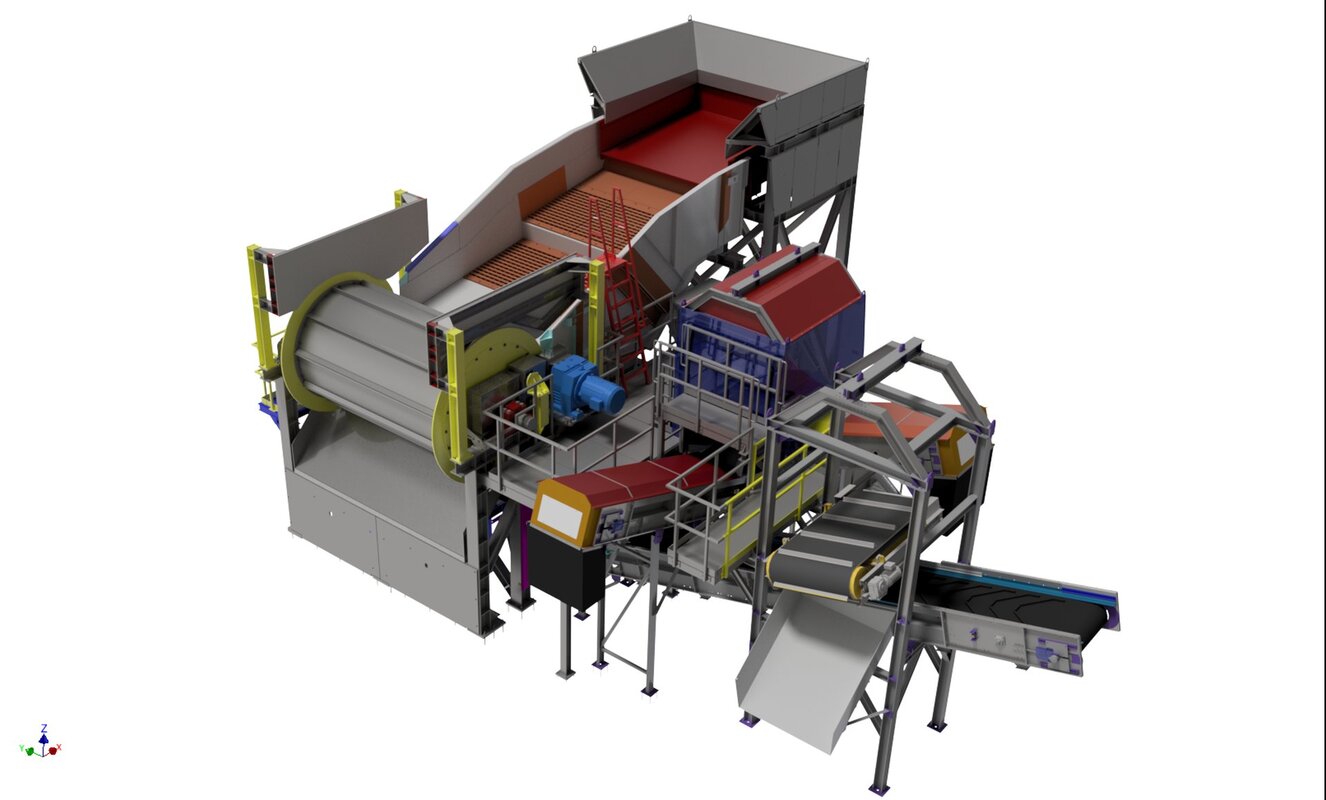

SCP CORE 3000 SF G — Ghent

Integrated ferrous Scrap Cleaning Plant with 150 t/h capacity, screening, fine and coarse ferrous recovery
Customer
Oxytec
Location
Ghent, Belgium
Year
2020

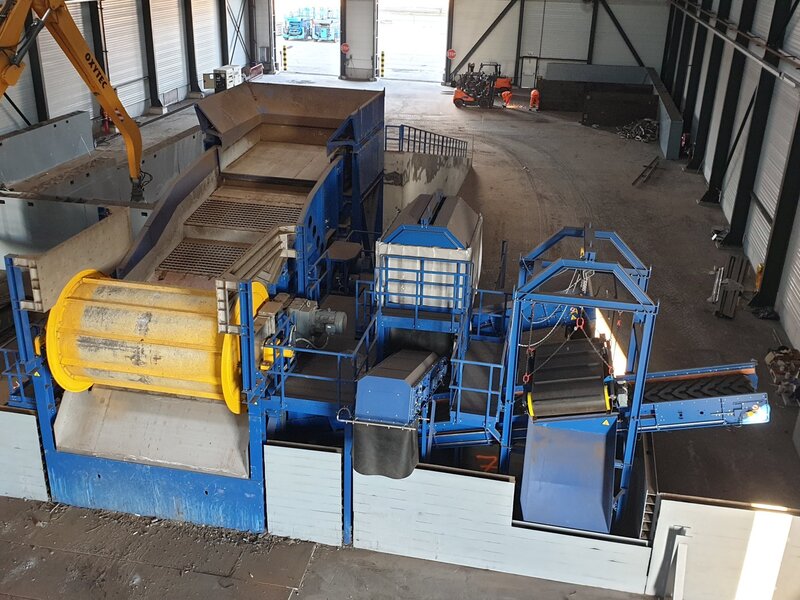

Installed indoors, SCP CORE 3000 SF G — Ghent is designed for high-capacity scrap cleaning with controlled material handling in an enclosed environment. Dust protection is achieved with an integrated water spray gun system, supporting clean operation while maintaining stable throughput and output quality.

Key technology

  • Vibrating feeder with cascades & screening
  • Electromagnetic drum with rotating shell
  • Discharge conveyors
  • Fine and coarse ferrous OVB recovery

Services

  • Engineering & manufacturing
  • Installation & commissioning
  • Operator training

Project gallery

Technical data
Type CORE (fixed installation)
Operating width 3000 mm
Screen Yes (0–40 mm)
Input scrap E1, E40, E46, HMS, wagon & ship scrap residues
Throughput 150 t/h
Output scrap purity Up to 99% by weight
Input size 0–1500 mm
Bulk density 0.6–1.0 t/m³
Connected power 118 kW
Magnetic drum size (mm) Ø 1800 x 3100
Fine ferrous recovery Yes
Coarse ferrous recovery Yes
Remote access Yes

How it works

01
Load
02
Spread & open (vibrating conveyors + cascades)
03
Screen 0–40 mm (fine fraction separated)
04
Main magnetic separation (drum)
05
Fine ferrous recovery on fine fraction (overbelt)
06
Clean ferrous discharge + non-magnetic discharge
