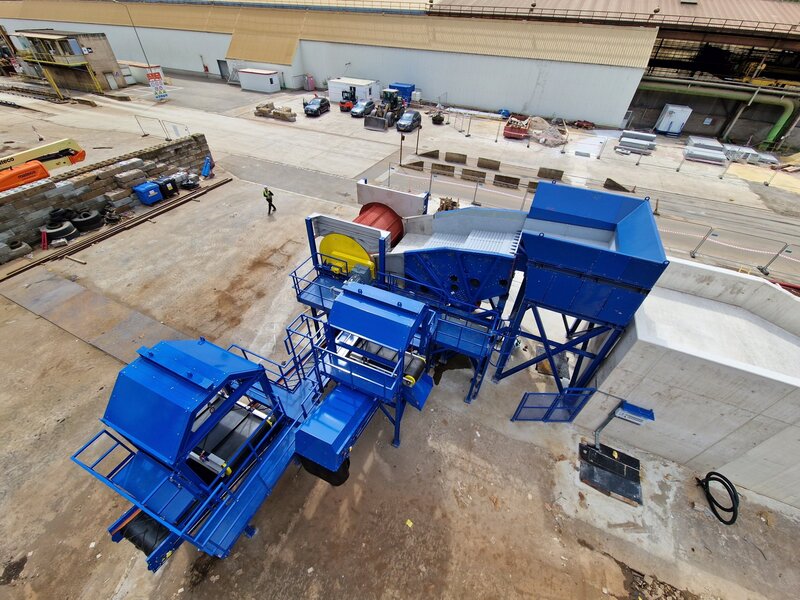

SCP CORE 3000 SF — Differdange
SCP CORE

SCP CORE 3000 SF — Differdange

Integrated ferrous Scrap Cleaning Plant with 150 t/h capacity, screening and fine ferrous recovery
Customer
Oxytec
Location
Differdange, Luxembourg
Year
2023

Installed as an integrated CORE plant, this SCP is designed for high-capacity magnetic cleaning of recycled ferrous scrap (E1, E46, E40, HMS) and wagon residues. Vibratory conveying with cascades opens compacted material for improved cleaning, while screening (0–20 mm) and fine ferrous recovery reduce ferrous losses in the fine fraction. The unit is installed on a pre-prepared reinforced concrete base plate.

Key technology

  • Vibrating feeder with cascades & screening
  • Electromagnetic drum with rotating shell
  • Fine Ferrous OVB recovery
  • Discharge conveyors

Services

  • Engineering & manufacturing
  • Installation & commissioning
  • Operator training

Project gallery

Technical data
Type CORE (fixed installation)
Operating width 3000 mm
Screen Yes (0–20 mm)
Input scrap E1, MHS, E40, E46, wagon residues
Throughput 150 t/h
Output scrap purity Up to 99% by weight
Input size 0–1500 mm
Bulk density 0.5–0.9 t/m³
Connected power 110 kW
Magnetic drum diameter (mm) Ø 1800 x 3100
Fine ferrous recovery Yes
Remote access Yes
Delivery of scrap Trucks, wagons

How it works

01
Load
02
Spread & open (vibrating conveyors + cascades)
03
Screen 0–20 mm (fine fraction separated)
04
Magnetic drum separation (main fraction)
05
Fine ferrous recovery on fine line (overbelt)
06
Clean ferrous discharge + screened/non-magnetic fraction collected for further treatment
