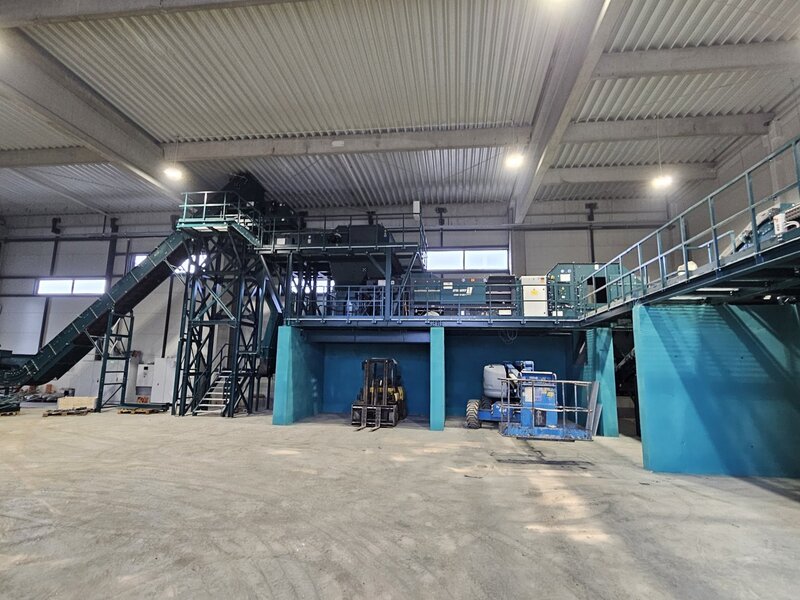

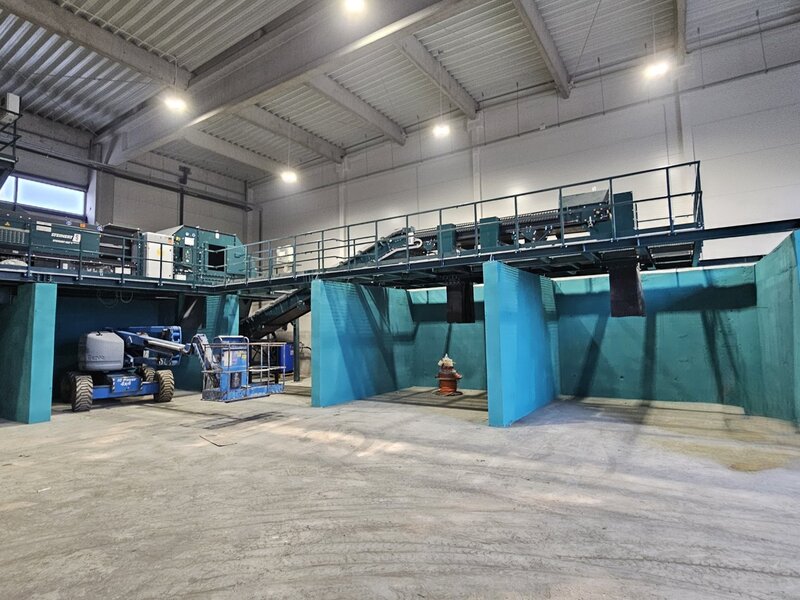

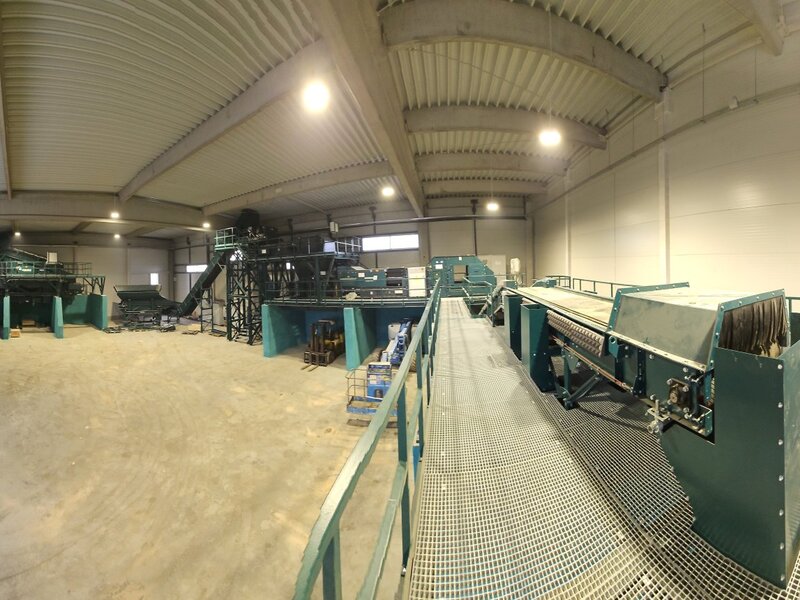

Non-ferrous recovery line
Two-stage process: classification → batch sorting
Customer
Rematinvest SRL
Location
Cluj-Napoca, Romania
Year
2024
A two-stage layout combines classification and sorting with controlled dosing to maintain steady material flow and repeatable separation. The first stage splits the input into size fractions, which helps prevent overloading and improves separation efficiency. In the second stage, each fraction is processed separately through ECS and X-ray sorting (XRT), allowing tuning by fraction and improving non-ferrous recovery.
Process overview
Stage 1 — Classification: Feeder → Fe magnet (eject ferrous) → Screen → size fractions: 0–10 (fines) / 10–30 / 30–100 / >100 (oversize).
Stage 2 — Sorting (per fraction): Feeder → Fe magnet (eject ferrous) → ECS → drop: non-metal + wire + stainless + PCB → eject: non-ferrous metal → XRT → drop: Al → eject: handpicking.
Key technology
- Buffering, dosing and controlled feeding
- Magnetic separation (ferrous removal)
- Screening & size classification
- Eddy current separation
- X-ray sorting
- Diverter / valve for fraction routing and fines eject
Services
- Process concept and sequencing for a two-stage line (classification + sorting)
- Layout & plant engineering (transfer points, access, safety)
- Mechanical integration (feeding, screening, magnets, ECS/XRT interfaces, discharge handling)
- Automation and commissioning (start-up tuning, handover)
