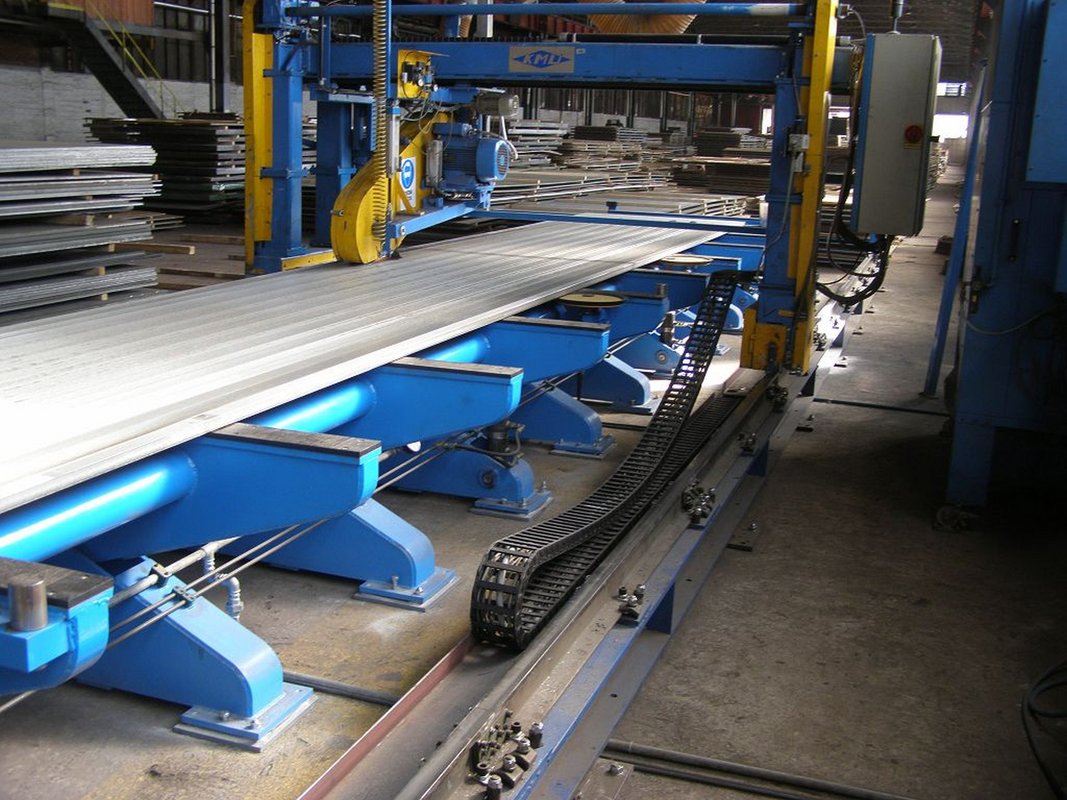

Grinding line leveling table

Hydraulic leveling table for grinding line.

Customer

Acroni

Location

Jesenice, Slovenia

Year

2007

Leveling table designed for controlled positioning of workpieces before grinding. Adjustable inclination supports process requirements across a range of plate dimensions and thicknesses.

Services

Design
Manufacture
Assembly
Start up

Project gallery

Technical data

Table	12 m (L) × 2.15 m (W) × 0.83 m (H)
Grinding width	0.8–2 m
Grinding length	6–12 m
Workpiece thickness	10–100 mm
Inclination	±3°
Motor power	5 kW (400 V, 50 Hz)
